Equipment Portfolio

Certified, inspected, and built for scale.

Industry-leading distribution panels, armoured cables, ATS units and IP67-rated sockets — meticulously maintained and continuously upgraded. Explore all our equipment below.

Main Distribution Panel (MDP) — 400A Aluminium Armoured Cables — 400A Camlocks Heavy-Duty Plug Point Box — 16A & 32A Auto Transfer Switch (ATYS) — 250A / 400A 250A Technical Distribution Box Polycab FRLS Copper Wires + IP67 Sockets

Equipment 1

Main Distribution Panel (MDP) — 400A

Heavy-duty 400A Camlock MDP with multi-socket output and live monitoring.

Technical Specifications

Input: 400A 3-phase via Male Camlocks (R, Y, B, N, P – colour-coded)
Output: Single-Phase & 3-Phase IP67 German sockets
XLP/C VAP35A LED meter (Voltage, Current, Frequency)
IP65 weatherproof powder-coated MS enclosure
MCB/MCCB protection, overload & short-circuit protection

Use case: Central distribution hub for large events — F&B malls, sound, stage lighting, PAR zones, technical setup.

Enquire about this product

Equipment 2

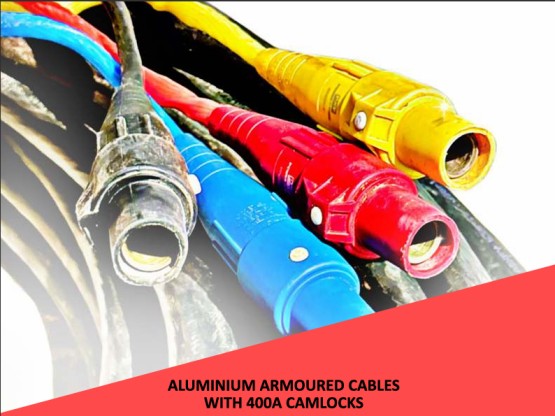

Aluminium Armoured Cables — 400A Camlocks

Heavy-duty armoured cables (50–300 sqmm) with 400A Camlock connectors.

Technical Specifications

Sizes: 50 sqmm – 300 sqmm, 3.5 core
Voltage rating: 1.1 kV
Class 2 stranded aluminium conductors
XLPE insulation, FRLS PVC sheathing, steel wire armoured
Fire-retardant, weather & abrasion-resistant

Use case: Genset to MDP, interconnection between PDBs, long-distance high-load runs.

Enquire about this product

Equipment 3

Heavy-Duty Plug Point Box — 16A & 32A

Robust plug boxes with MCB protection and live-phase indicators.

Technical Specifications

Input: 1 phase, 240V AC, 50Hz via 16A/32A German industrial socket
Outputs: 16A & 32A 3-pin industrial sockets (IP44/IP67)
Individual MCBs (Type C, 240V AC) per socket
LED indicator for live-phase presence
Optional additional sockets per event need

Use case: BAR counters, registration desks, CCTV rooms, greenrooms, office booths, utility devices.

Enquire about this product

Equipment 4

Auto Transfer Switch (ATYS) — 250A / 400A

Automatic changeover between mains and backup — uninterrupted power for critical event systems.

Technical Specifications

Ratings: 250A / 400A, 4 Pole
Brand: Socomec / L&T / Schneider (per availability)
Voltage: 415V AC, 50Hz – Switching time 1–3 seconds
Enclosure: IP65/IP66 metal or ABS
Auto/Manual mode, LED status indicators, copper busbar terminations

Use case: Grid-to-Genset or Dual-Genset switching for seamless supply at events, conferences, exhibitions.

Enquire about this product

Equipment 5

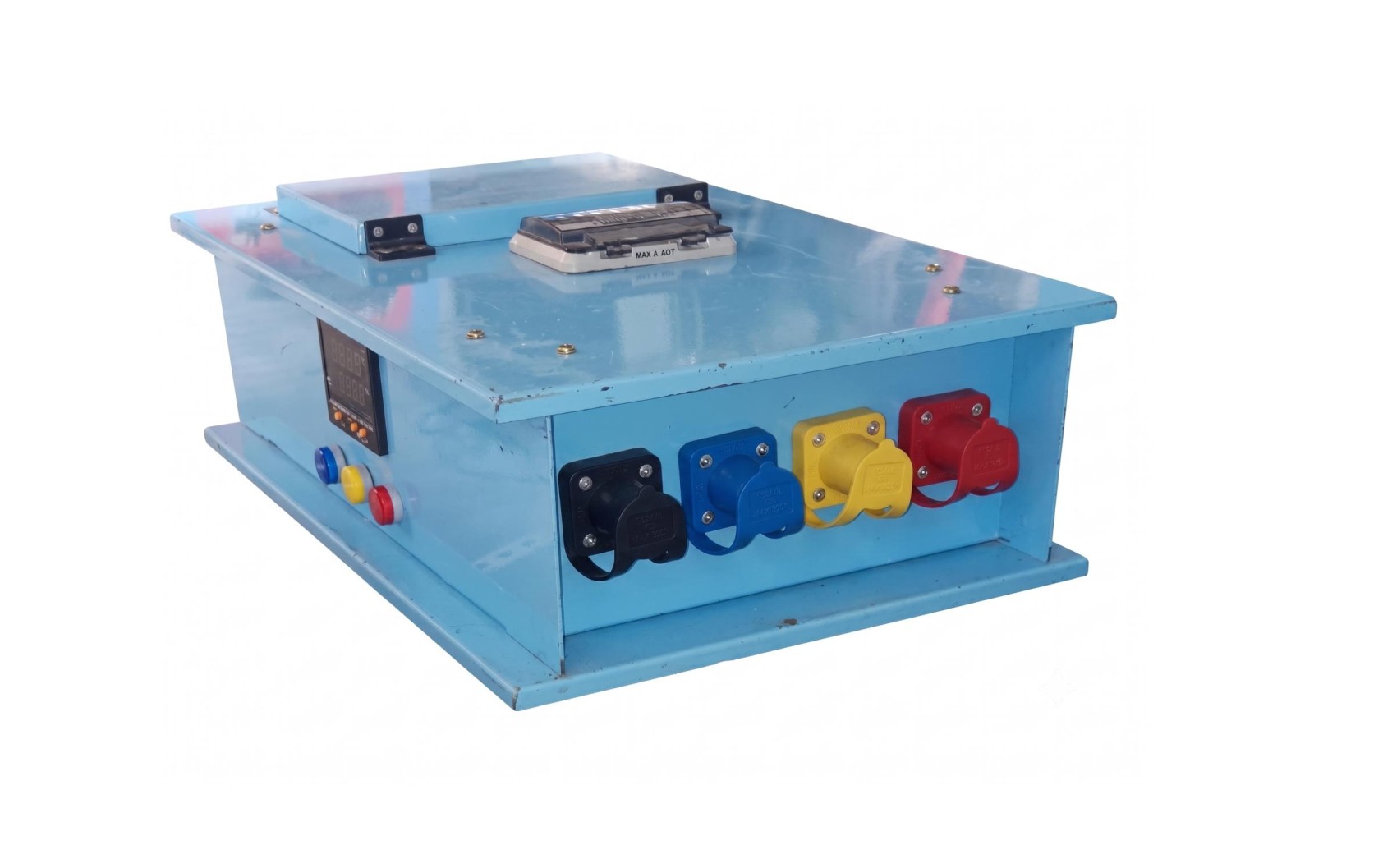

250A Technical Distribution Box

L&T MCCB 250A technical box with Earth Leakage Device for sensitive event equipment.

Technical Specifications

Main breaker: L&T MCCB 250A, 4P
Built-in Earth Leakage Device (ELD)
Input: 3 Phase, 4 Wire, 415V
Output: 3 Phase, 4 Wire, 415V busbar

Use case: High-end sound systems, LED Walls, stage lighting – safety and clean power for sensitive loads.

Enquire about this product

Equipment 6

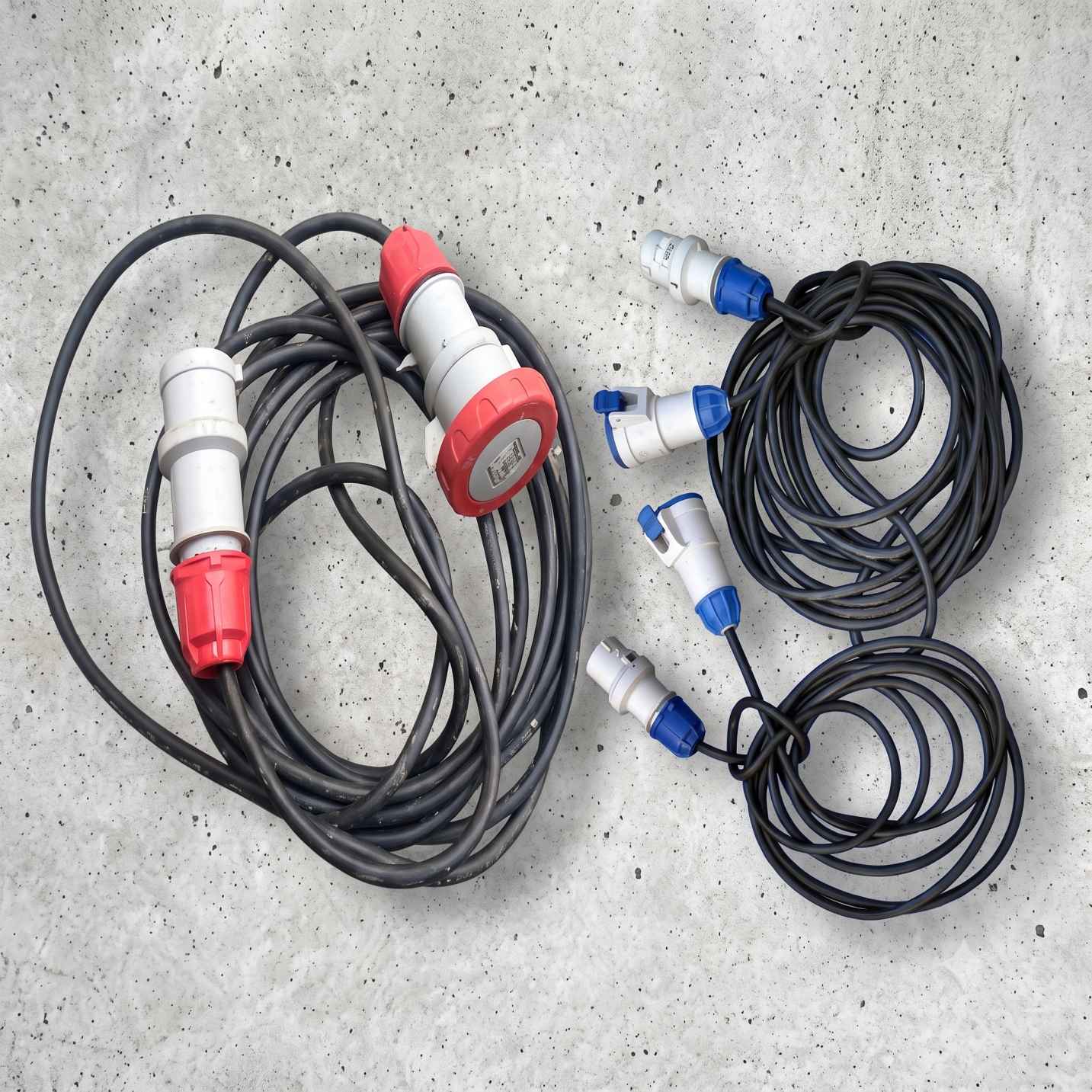

Polycab FRLS Copper Wires + IP67 Sockets

Double-insulated FRLS copper wire with IP67 German cable sockets.

Technical Specifications

Sizes: 2.5 sqmm 3-core, 4 sqmm 3-core, 6 sqmm 5-core, 10 sqmm 5-core
IP67 rated – dust-tight & waterproof
Flame-retardant polyamide body, locking mechanism
FRLS insulation – heat and moisture-resistant
Flexible copper for easy handling

Use case: Stage power, greenrooms, F&B stalls, mixers, AC rooms, CCTV & admin booths.

Enquire about this product
